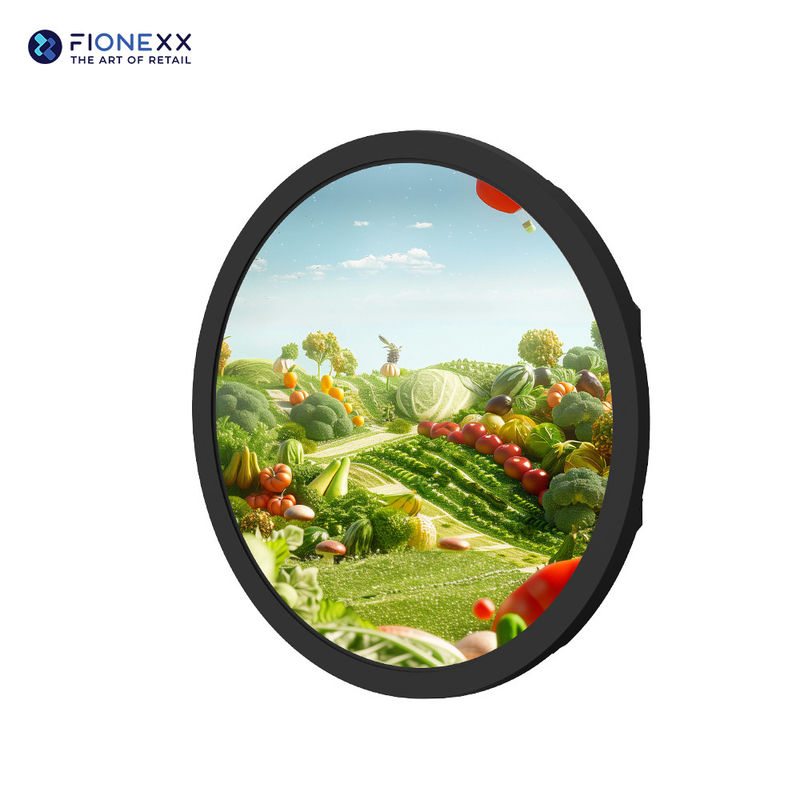

15.7inch Circler Digital Signage 700nits LCD Display with Android OS

Product Details

Place of Origin: Shenzhen, China

Brand Name: FIONEXX

Certification: CE, RoHS

Model Number: TC157

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: EPE+ Carton box

Delivery Time: 20-25 days

Payment Terms: T/T,PayPal

Supply Ability: 2000pcs per month

Get Best Price
Highlight:
LCD Size:
15.7inch
Resolution:
960x960
Brightness:
700nits
Solution:
Android
Installation:
Wall Mounted
Application:
Indoor, Retail Shops
LCD Size:
15.7inch
Resolution:
960x960
Brightness:
700nits
Solution:
Android
Installation:
Wall Mounted
Application:
Indoor, Retail Shops
15.7inch Circler Digital Signage 700nits LCD Display with Android OS

Description:



Dynamic Digital Shelf Display


Upgrading from traditional static shelf labels opens up a whole new world of possibilities. As well as creating vibrant and exciting end-aisle displays that includes animation you can also change prices or product details instantly and remotely.



IPS Panel


Designed for brightly-lit retail spaces, the high brightness nature of these displays means content really stands out. Plus, the commercial IPS panel guarantees accurate image quality at an ultra-wide viewing angle in any direction, without any fall-off in colour accuracy.



Clear HD Resolution


Unlike LED shelf edge displays this solution uses a full HD LCD panel to provide a clear image. This is high resolution is essential to be able to read labels that have small writing and also produce the best results when showing video.



Synchronise Multiple Displays


The multi-screen synchronisation function allows you to place multiple displays side-by-side and run attention-grabbing content seamlessly across the entire promotional endcap.



Streamlined Enclosure


Designed to maximise the impact of content, these displays feature a sleek, narrow bezel. This is especially important when placing multiple screens together. The compact design also adds to the aesthetic and reduces strain on shelf edges.



24/7 Commercial Grade


As they are designed for the retail spaces these screens are commercially graded to run constantly 24/7.


Specification:



 LCD Panel  Panel size  15.7inch
 Resolution  960x960
 Display Area  400.032×400.032 mm
 Brightness  700cd/m2
 Contrast  1000:1
 Aspect Ratio  1:1
 Colour  16.7M (8-bit)
 Response Time  -
 View Angle  89/89/89/89 (Typ.)(CR≥10)
 Working life  50,000 hours
 Computer  CPU  RK3568, Quad-Core, 2.0GHz
 RAM  2GB
 ROM  16GB
 OS  Android 11.0
 WiFi  802.11b/g/n (2.4G, 5G wifi for optional)
 I/O Ports  2 x USB, 1x RJ45, 1x OTG Micro USB, 1x DC IN
 Media Formats

 Video (AVI,MOV,MP4,M4V,FLV,MPG,ASF);

 Audio (MPEG, WAV, OGG, FLAC);

 Image (JPG, GIF, BMP, PNG)

 Speaker  2×8Ω 5W
 Power  Input Voltage  DC 12V 5A
 Power Consumption  ≤ 40 W
 Mechanical  Color  Black, or Customization
 Shell Material  Metal
 Installation Type  Wall-mounted
 Unit Size   452.96*452.96*41.21/51.21mm
 Net Weight  5 kg
 Gross Weight   9 kg
 Package Size   66*17*60cm
 Environmental  Operating Temperature  0 ~45
 Storage Temperature  -20 ~60
 Operating Humidity  10% ~80%
 Storage Humidity  5% ~95%



ID Drawing:

15.7inch Circler Digital Signage 700nits LCD Display with Android OS 0



Application:

15.7inch Circler Digital Signage 700nits LCD Display with Android OS 1



FAQ:



Q1: Are you a factory?



A: Yes, we are a manufacturer of LCD Window Display, Retail Digital Signage, Outdoor Digital Totem, Self-service Kiosk, and so on.



Q2: Do you accept OEM or ODM orders?



A: Yes, we welcome OEM and ODM orders.



Q3: Could you offer wholesale price?



A: Yes, of course. If you order large QTY, we can give you the bulk price.



Q4: I'm shopping at your company at the first time, how can I trust you?



A: If you have questions about our first cooperation, we fully understand. You are welcome to visit our company or our factory at any time.



Q5: I'm looking for some products which is not shown on your website, can you make me the special order?



A: We value the cooperation between us. Therefore, if you have a demand, we will be happy to provide you with a complete solution.



Q6: How to shipping my order?



A: We have strong cooperation with DHL, UPS, Fedex, TNT ect. You also can choose your own shipping forwarder.



Q7: What is your guarantee period?



A: Fionexx provides 1 year quality guarantee for the products from your shipment date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, we will provide maintenance service and technical support.



Q8: How can I pay for the order?


A: 1) For sample order: EXW factory, 100% T/T or Paypal in advance.
2) For bulk order: FOB SZ/HK, 40% deposit in advance, balance before shipment.



Q9: How to be your agent in my country?



A: You must plan to build a long-term relationship with us. Authorization will depend on your purchase volume and the expected size of the regional market.
