Product Details
Place of Origin: Shenzhen, China
Brand Name: FIONEXX
Certification: CE, RoHS
Model Number: LC238K
Payment & Shipping Terms
Minimum Order Quantity: 50PC
Price: Negotiable
Packaging Details: EPE+ Carton box
Delivery Time: 25-30 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs per month
Screen Size: |
23.8inch |
Resolution: |
1920x1080 |
Brightness: |
500cd/m2 |
Touch: |
10-point Capacitive Touch |
Camera: |
2.0MP*2 |
Printer: |
58/80mm Thermal Printer |
Scanner: |
1D Barcode, QR Code |
Application: |
Indoor, Retail Shops, Fast Food Restaurant |
Screen Size: |
23.8inch |
Resolution: |
1920x1080 |
Brightness: |
500cd/m2 |
Touch: |
10-point Capacitive Touch |
Camera: |
2.0MP*2 |
Printer: |
58/80mm Thermal Printer |
Scanner: |
1D Barcode, QR Code |
Application: |
Indoor, Retail Shops, Fast Food Restaurant |
Description:

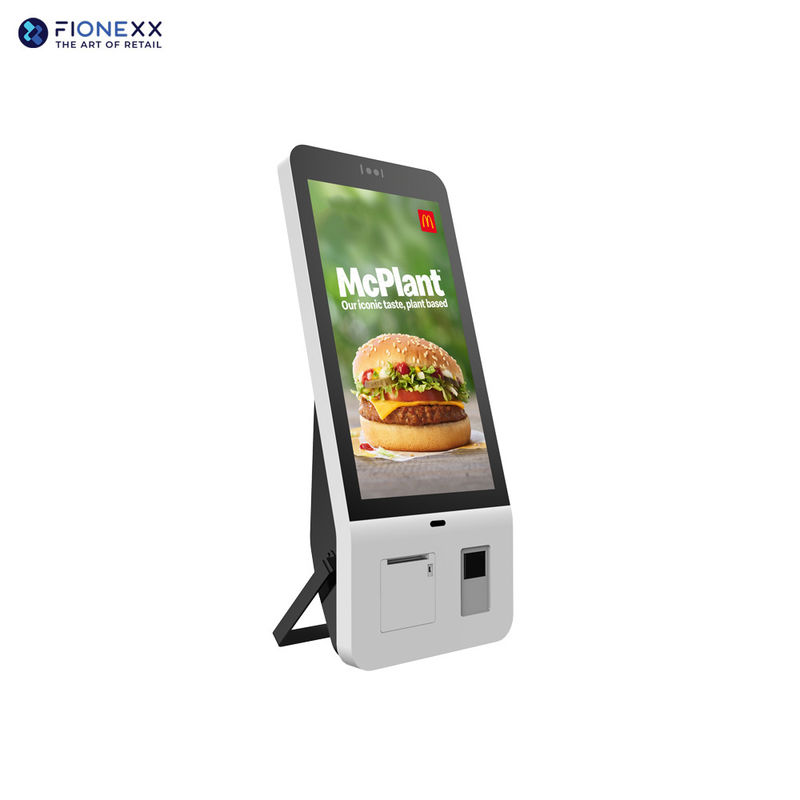

All-in-One Automated Self Ordering System
The numerous benefits for self service systems are clear, from allowing staff to focus more on customer service, reducing queues and waiting times as well as improving and optimising the overall customer experience. This all-in-one solution is designed for the fast food sector but can also be used in a range of retail spaces providing a PCAP touch screen, QR Code scanner, printer in one solution. There is also space to integrate a credit card payment reader.
Integrated Thermal Receipt Printer
The integrated printer provides a fast and reliable printing solution for the kisok and can be used to print receipts and promotional vouchers. The printer is designed to not only be easy to use but also easy to maintain for businesses. With the inkless thermal printer can print receipts up to 250mm/sec with additional options that can reduce paper usage up to 30%.
Easy Roll Replace
The till roll for the thermal printer is located in a separate compartment so that staff can quickly and conveniently replace the roll without having to open the main access door.
Integrated QR Code Scanner
The scanner features an LED light to improve reading ability and can be used to scan barcodes or QR codes in conjunction with special offers or to place orders.
Anti-Theft Mounting Options
As standard the kiosk can be securely mounted directly to the wall from inside the lockable door – providing an anti-theft flush fit. There is also an optional floor stand available on request when wall mounting is not possible. The 24inch Kiosk can also be securely mounted on countertops.
24/7 Constant Use
As many quick service restaurants and supermarkets are open 24/7 any kiosk solution needs to be up to the task of being in continuous use.
Customisable
Other sizes and colours are available on request. We can also design and manufacture bespoke units with an integrated camera or double-sided versions.
Optional NFC Card Reader
If required, an NFC card reader can be seamlessly integrated into this solution. This will allow users to make swift, contactless payments via mobile devices.
Specification:
| LCD Panel | Panel size | 23.8inch |
| Resolution | 1920x1080 | |
| Display Area |
527.04x296.46mm
|
|
| Brightness | 500cd/m2 | |
| Contrast | 1000:1 | |
| Aspect Ratio | 16:9 | |
| Colour | 16.7M(8 bit) | |
| Response Time | 14ms | |
| View Angle | 178° / 178° | |
| Working life | 50,000 hours | |
| Computer | CPU | RK3568, Quad-Core, 2.0GHz |
| RAM | 4GB | |
| ROM | 32GB | |
| OS | Android 11.0 | |
| WiFi | 802.11b/g/n | |
| LAN | 10M/100M Ethernet | |
| I/O Ports | 2 x USB, 1x RJ45, 1 x DC IN, | |
| Media Formats |
Video (AVI,MOV,MP4,M4V,FLV,MPG,ASF); |
|
| Media Resolution | 1920x1080 | |
| Audio | Speaker Type | 5W, 8Ω x2 |
| Power | Input Voltage | 100V~220V AC |
| Power Consumption | 80W | |
| Mechanical | Color | White, black or Customization |
| Shell Material | Metal | |
| Installation Type | Desktop, wall mounted | |
| Unit Size | 825.6*358.5*216.2mm | |
| Net Weight | 16.5 kg | |
| Gross Weight | 19.5 kg | |
| Package Size | 920 x 230 x 480mm | |
| Environmental | Operating Temperature | 0℃ ~50℃ |
| Storage Temperature | -30℃ ~60℃ | |
| Operating Humidity | 10% ~80% | |
| Storage Humidity | 5% ~95% |
ID Drawing:
Applicaton:
FAQ:
Q1: Are you a factory?
A: Yes, we are a manufacturer of LCD Window Display, Retail Digital Signage, Outdoor Digital Totem, Self-service Kiosk, and so on.
Q2: Do you accept OEM or ODM orders?
A: Yes, we welcome OEM and ODM orders.
Q3: Could you offer wholesale price?
A: Yes, of course. If you order large QTY, we can give you the bulk price.
Q4: I'm shopping at your company at the first time, how can I trust you?
A: If you have questions about our first cooperation, we fully understand. You are welcome to visit our company or our factory at any time.
Q5: I'm looking for some products which is not shown on your website, can you make me the special order?
A: We value the cooperation between us. Therefore, if you have a demand, we will be happy to provide you with a complete solution.
Q6: How to shipping my order?
A: We have strong cooperation with DHL, UPS, Fedex, TNT ect. You also can choose your own shipping forwarder.
Q7: What is your guarantee period?
A: Fionexx provides 1 year quality guarantee for the products from your shipment date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, we will provide maintenance service and technical support.
Q8: How can I pay for the order?
A: 1) For sample order: EXW factory, 100% T/T or Paypal in advance.
2) For bulk order: FOB SZ/HK, 40% deposit in advance, balance before shipment.
Q9: How to be your agent in my country?
A: You must plan to build a long-term relationship with us. Authorization will depend on your purchase volume and the expected size of the regional market.
