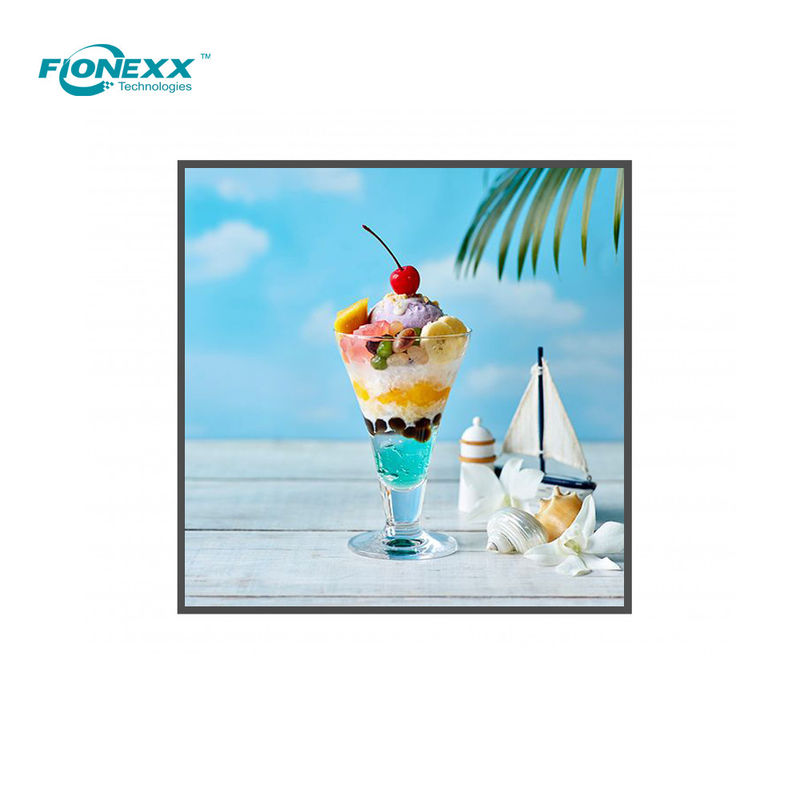

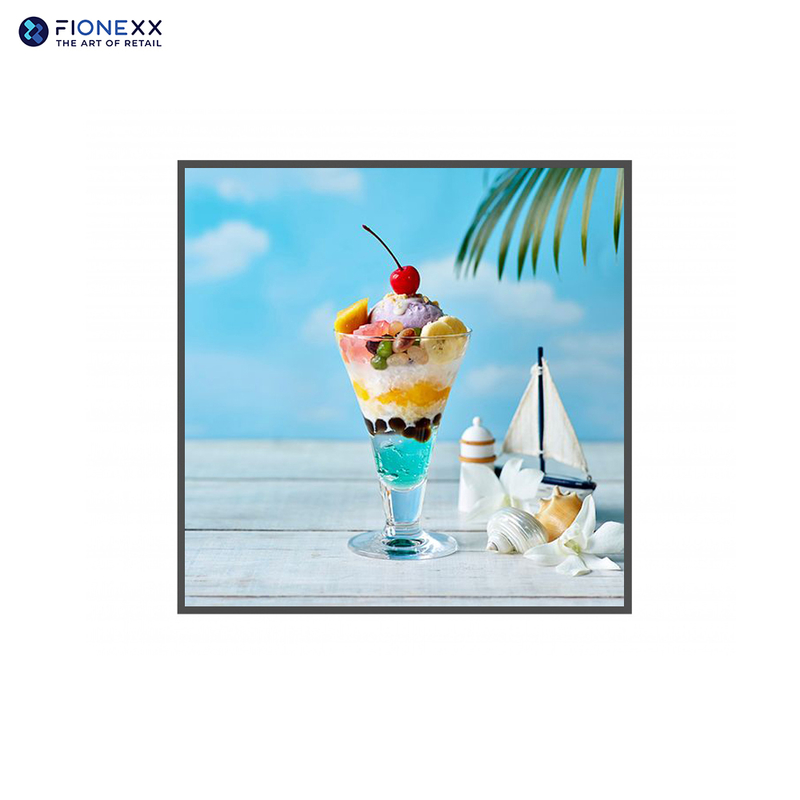

22inch 500nits Slim Square LCD Screen Wall mounted Digital Signage

Product Details

Place of Origin: Shenzhen, China

Brand Name: FIONEXX

Certification: CE, RoHS

Model Number: TS22S

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: EPE+ Carton box

Delivery Time: 25-30 days

Payment Terms: T/T, PayPal

Supply Ability: 2000pcs per month

Get Best Price
Highlight:

Slim Square LCD Screen

,

22inch Square LCD Screen

,

500nits Wall mounted Digital Signage

LCD Size:
22inch
Resolution:
1920x1920
Brightness:
500nits
Bezel:
7.98mm (L/RT/B)
Installation:
Wall Mounted
Application Area:
Indoor, Retail Shops
LCD Size:
22inch
Resolution:
1920x1920
Brightness:
500nits
Bezel:
7.98mm (L/RT/B)
Installation:
Wall Mounted
Application Area:
Indoor, Retail Shops
22inch 500nits Slim Square LCD Screen Wall mounted Digital Signage



Description:



Perfect for Retail Display


Incredibly sleek, stylish and slim yet extremely visible,with a bright 500nits display, designed to stand out in busy retail and commercial environments.



Ultra Slim design & Black Bezel


Featuring an ultra slim profile and bezel, the square screen is perfect for a range of retail locations to suit bespoke builds and unique designs.



Plug & Play (USB) or Cloud CMS Connected


Content can be updated easily via USB with the built-in Media Player or upgrade to a Cloud Connected Media player to schedule content and schedules remotely.



Lightweight & Easy Installation


Complete with a hanging kit and bracket, the screen can be installed in a matter of minutes hassle free.



24/7 Commercial Grade


As they are designed for the retail spaces these screens are commercially graded to run constantly 24/7.




Specification:



 LCD Panel  Panel size  22inch
 Resolution  1920x1920
 Display Area  394.56 x 394.56mm
 Brightness  500cd/m2
 Contrast  1000:1
 Aspect Ratio  1:1
 Colour  16.7M
 Response Time  6.5ms
 View Angle  178°
 Working life  50,000 hours
 Computer  CPU  Rockchip RK3288 Quad-core Cortex-A17,1.8GH
 RAM  2GB
 ROM  8GB
 OS  Android 7.1
 WiFi & BT  802.11b/g/n (Network Version Only) & BT4.0
 LAN  100M/1000M Ethernet (Network Version Only)
 I/O Ports  2 x USB, 1 x RJ45, 1 x DC in
 Media Formats

 Video (AVI,MOV,MP4,M4V,FLV,MPG,ASF);

 Audio (MPEG, WAV, OGG, FLAC);

 Image (JPG, GIF, BMP, PNG)

 Media Resolution  1920x1920
 Audio  Speaker Type  5W, 8Ω x2
 Power  Input Voltage DC 12V~5A
 Power Consumption  ≤ 36 W
 Mechanical  Color  Black or Customization
 Shell Material  Full Metal
 Installation Type  Wall mounted
 Unit Size   411.96 × 411.96 × 25.1 mm
 Net Weight   4.25 kg
 Gross Weight   5.75 kg
 Package Size   650 × 550 × 90 mm
 Environmental  Operating Temperature  0 ~50
 Storage Temperature  -30 ~60
 Operating Humidity  10% ~80%
 Storage Humidity  5% ~95%



ID Drawing:



22inch 500nits Slim Square LCD Screen Wall mounted Digital Signage 0



Application:



22inch 500nits Slim Square LCD Screen Wall mounted Digital Signage 1



FAQ:



Q1: Are you a factory?



A: Yes, we are a manufacturer of LCD Window Display, Retail Digital Signage, Outdoor Digital Totem, Self-service Kiosk, and so on.



Q2: Do you accept OEM or ODM orders?



A: Yes, we welcome OEM and ODM orders.



Q3: Could you offer wholesale price?



A: Yes, of course. If you order large QTY, we can give you the bulk price.



Q4: I'm shopping at your company at the first time, how can I trust you?



A: If you have questions about our first cooperation, we fully understand. You are welcome to visit our company or our factory at any time.



Q5: I'm looking for some products which is not shown on your website, can you make me the special order?



A: We value the cooperation between us. Therefore, if you have a demand, we will be happy to provide you with a complete solution.



Q6: How to shipping my order?



A: We have strong cooperation with DHL, UPS, Fedex, TNT ect. You also can choose your own shipping forwarder.



Q7: What is your guarantee period?



A: Fionexx provides 1 year quality guarantee for the products from your shipment date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, we will provide maintenance service and technical support.



Q8: How can I pay for the order?


A: 1) For sample order: EXW factory, 100% T/T or Paypal in advance.
2) For bulk order: FOB SZ/HK, 40% deposit in advance, balance before shipment.



Q9: How to be your agent in my country?



A: You must plan to build a long-term relationship with us. Authorization will depend on your purchase volume and the expected size of the regional market.
