Home > products > LCD Window Displays > Thickness 57mm LCD Window Displays Double Sided Digital Signage 49inch

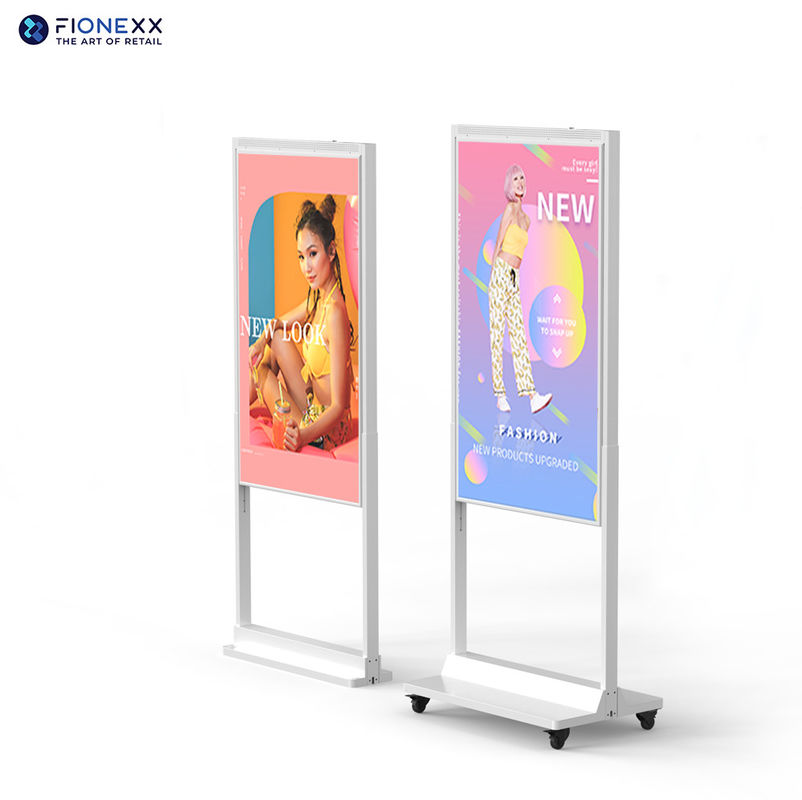

Thickness 57mm LCD Window Displays Double Sided Digital Signage 49inch

Product Details

Place of Origin: Shenzhen, China

Brand Name: FIONEXX

Certification: CE, RoHS

Model Number: WD49LP

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: EPE+ Honeycomb box

Delivery Time: 25-30 days

Payment Terms: T/T, PayPal

Supply Ability: 2000pcs per month

Get Best Price
Highlight:

57mm LCD Window Displays

,

57mm Double Sided Digital Signage

,

LCD Window Displays 49inch

LCD Size:
49inch
Resolution:
1920x1080
Brightness:
3500nits + 700nits
Bezel:
14.3mm
Thickness:
57mm
Installation:
Floor Standing
Technical:
OD10 Wide-range Temp. Backlight
Application:
Retail Shops, Facing Window
LCD Size:
49inch
Resolution:
1920x1080
Brightness:
3500nits + 700nits
Bezel:
14.3mm
Thickness:
57mm
Installation:
Floor Standing
Technical:
OD10 Wide-range Temp. Backlight
Application:
Retail Shops, Facing Window
Thickness 57mm LCD Window Displays Double Sided Digital Signage 49inch

Description:



Perfect for Window Displays


With a 3,500cd/m² outward-facing screen to combat direct sunlight and a 700cd/m² inward-facing screen to combat brightly-lit indoor spaces, these dual-sided displays are designed for shopfront windows.



Ultra Resistant to Blackening


Thanks to their special ultra-high brightness panels, these displays can withstand surface temperatures up to 105˚C without suffering from any blackening defect. This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.



Different Content on Each Side


When using the online CMS software, you can really capitalise on the duality of these displays by broadcasting different content on each side. Tailor your messaging to people inside and outside the building for maximum effectiveness.



Lightweight Slim Enclosure


Thanks to their streamlined design, these innovative displays feature a slim depth, minimal cord clutter, and high energy efficiency. Plus, not only is the aluminium enclosure incredibly lightweight for easy installation, it also has high thermal conductivity. This allows rapid heat loss, improving overall performance and increasing lifespan.



Ambient Light Sensor


These displays include an external ambient light sensor for use when required. This ensures the screen is always operating at the most suitable brightness for its environment.



Smart Temperature Control


The responsive internal airflow system keeps the panel and other internal components at optimum working temperature. This ensures a long and reliable life for your screen, even when used continuously in outward-facing windows.



Other Colors Available



Although these displays come in white/ black as standard, which offers a clean, modern aesthetic making them ideal for environments such as retail stores and pharmacies, the enclosure can also be customised to any colour you desire.



Freestanding Option Available



For projects where hanging installation is not possible, these versatile displays can also be transformed into a freestanding solution using the optional floor stand. No matter which mounting option you go for, an easy install is guaranteed.



Integrated Speakers


The displays feature two integrated slimline speakers for applications that require an audio element.



24/7 Commercial Grade


With a commercial grade LCD panel, LED backlight and internal components, these displays have the ability to be in constant use 24/7 for over 50,000 hours.



Power Timer


The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.


Specification:



LCD Panel

 Panel size

 49inch x2

 Resolution

 1920x1080

 Display Area

 1073.8*604mm

 Brightness

 2500-4000cd/m2 +700cd/m2-1000cd/m2-

 Contrast

 1200:1

 Aspect Ratio

 16:9

 Colour

 16.7M

 Response Time

 8ms

 View Angle

 178° / 178°

 Working life

 50,000 hours

Computer

 CPU

 RK3568 Quad-Core, 1.8GHz

 RAM

 2GB

 ROM

 16GB

 OS

 Android 11.0

 WiFi

 802.11b/g/n (Network Version 2.4G Only)

 LAN

 100M/1000M Ethernet (Network Version Only)

 I/O Ports

 2 x USB3.0, 1 x RJ45, 1 x DC In

 Media Formats

 Video (AVI,MOV,MP4,M4V,FLV,MPG,ASF);                         Audio (MPEG, WAV, OGG, FLAC);                                       Image (JPG, GIF, BMP, PNG)

Audio

 Speaker Type

 5W, 8Ω x2

Power

 Input Voltage

 AC110~240V (50Hz~60Hz)

 Power Consumption

 ≤290W

Mechanical

 Color

 Black, white or Customization

 Shell Material

 Aluminum alloy

 Installation Type

 Ceiling mounted, Floor standing in optional

 Unit Size

 1147*637*57mm

Net Weight

 25 kg

Gross Weight

 43 kg with full brackets

Package Size

 1462x246x962mm

Environmental

Surface Panel Temperature

 Up to 110°C

Operating Temperature

 0 ~50

Storage Temperature

 -30 ~60

Operating Humidity

 10% ~80%

Storage Humidity

 5% ~95%



ID Drawing:

Thickness 57mm LCD Window Displays Double Sided Digital Signage 49inch 0

Thickness 57mm LCD Window Displays Double Sided Digital Signage 49inch 1



Application:



Thickness 57mm LCD Window Displays Double Sided Digital Signage 49inch 2



FAQ:



Q1: Are you a factory?



A: Yes, we are a manufacturer of LCD Window Display, Retail Digital Signage, Outdoor Digital Totem, Self-service Kiosk, and so on.



Q2: Do you accept OEM or ODM orders?



A: Yes, we welcome OEM and ODM orders.



Q3: Could you offer wholesale price?



A: Yes, of course. If you order large QTY, we can give you the bulk price.



Q4: I'm shopping at your company at the first time, how can I trust you?



A: If you have questions about our first cooperation, we fully understand. You are welcome to visit our company or our factory at any time.



Q5: I'm looking for some products which is not shown on your website, can you make me the special order?



A: We value the cooperation between us. Therefore, if you have a demand, we will be happy to provide you with a complete solution.



Q6: How to shipping my order?



A: We have strong cooperation with DHL, UPS, Fedex, TNT ect. You also can choose your own shipping forwarder.



Q7: What is your guarantee period?



A: Fionexx provides 1 year quality guarantee for the products from your shipment date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, we will provide maintenance service and technical support.



Q8: How can I pay for the order?


A: 1) For sample order: EXW factory, 100% T/T or Paypal in advance.
2) For bulk order: FOB SZ/HK, 40% deposit in advance, balance before shipment.



Q9: How to be your agent in my country?



A: You must plan to build a long-term relationship with us. Authorization will depend on your purchase volume and the expected size of the regional market.
