Product Details
Place of Origin: Shenzhen, China
Brand Name: FIONEXX
Certification: CE, RoHS
Model Number: FCO220D-4A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: EPE + Carton box + Wooden box
Delivery Time: 30-35 days
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs per month
LCD Size: |
22inch |
Resolution: |
1920x1080 |
Brightness: |
1000-1500nits |
Touch Panel: |
Optional |
Tempered Glass: |
5mm Military Standard Tempered Glass |
Waterproof: |
IP65 |
LCD Size: |
22inch |
Resolution: |
1920x1080 |
Brightness: |
1000-1500nits |
Touch Panel: |
Optional |
Tempered Glass: |
5mm Military Standard Tempered Glass |
Waterproof: |
IP65 |

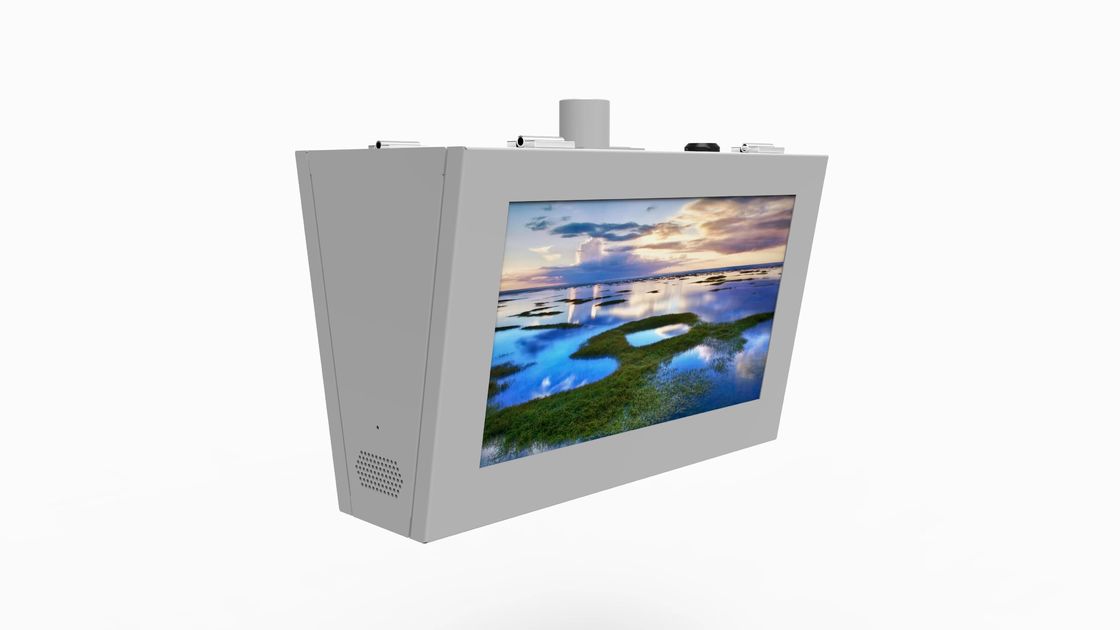

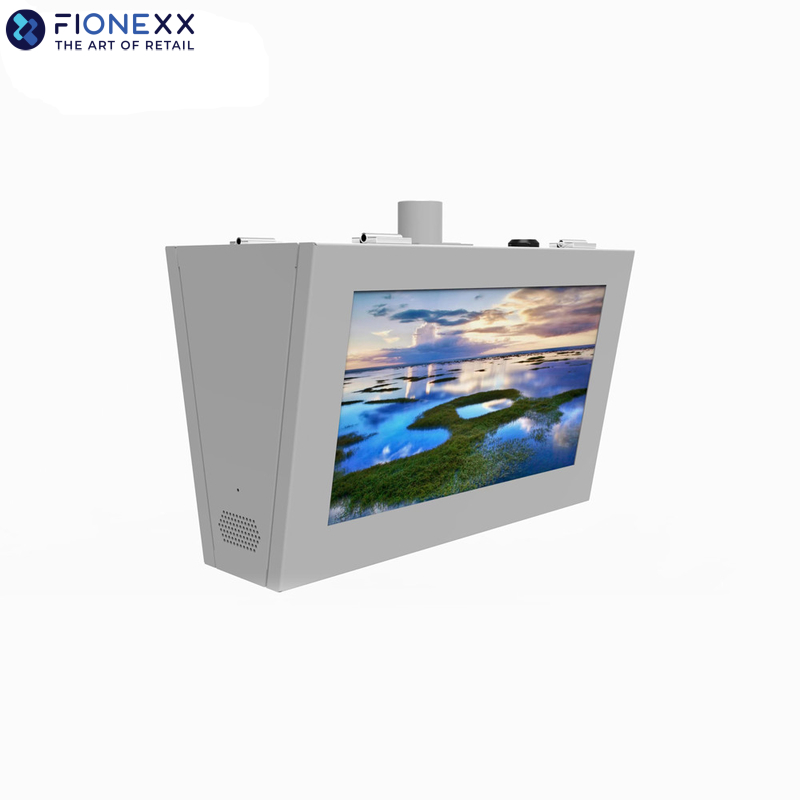

Bus Stop Outdoor Hanging 22inch doubel sided digital information sign
Description:
Double sided hanging bus stop signage, perfect for any weather conditions.
*Aluminum case
The product case is made by aluminum material entirely, which can help decrease the weight and heat dissipate
*IP65 Rated Weatherproof Enclosure
The outer casing has an IP65 rating which means it keeps out all airborne swarf, dust and other particles as well as being protected from any wet weather conditions; broadening the range of possible environments.
*High-bright 1000-1500 Nits display
With a high brightness range up to 1500 Nits, the Ultra-Slim Outdoor Display is crystal clear and readable even under direct sunlight conditions, ideal for full outdoor installations.
*Vandal Proof
The Ultra-Slim Outdoor Display includes 5mm military standard tempered glass to resist 95% UV/Radiant hurts from Sunshine. This is ideal for outdoor environments, not only protecting from the elements, dust & water but also being impact resistant.
*Ambient Light Sensor
The totem has a light sensor that changes the screen’s brightness depending on the ambient light ensuring the most suitable brightness depending on the environment.
*Anti-Glare Glass
This display features a tempered glass front that has been specially treated to give it an anti-glare finish. This completely diffuses external light reflections without reducing the brightness of the screen, improving the readability of on-screen content.
*Vandal Proof & sunlight damage
With 5mm military standard tempered glass to resist 95% UV/Radiant hurts from Sunshine, even under direct exposure to sunlight, this display guarantees resistance to blackening defects up to 110°C, providing Zero Black Spotting & or Sunlight Damage. This is ideal for outdoor environments, not only protecting from the elements, dust & water but also being impact resistant.
*Supporting a wide temperature range light damage
The uniquely designed Aluminium enclosure with Heat Sink Ambient Air-Cooling provides a wide core temperature from -30°C to 55°C for the LCD panel, Motherboards and components. This ensures the outdoor displays work 24/7 & 365 days of the year under hot or cold weather conditions.
Specification:
| LCD Panel | Panel size | 22inch |
| Resolution | 1920x1080 | |
| Display Area | 477*268mm | |
| Brightness | 1000cd/m2 - 1500cd/m2 | |
| Contrast | 1200:1 | |
| Aspect Ratio | 16:9 | |
| Colour | 16.7M | |
| Response Time | 8ms | |
| View Angle | 178° | |
| Working life | 50,000 hours | |
| Computer | CPU | Quad-Core, 1.8GHz |
| RAM | 2GB | |
| ROM | 16GB | |
| OS | Android 11.0 | |
| WiFi | 802.11b/g/n (Network Version Only) | |
| LAN | 100M/1000M Ethernet (Network Version Only) | |
| I/O Ports | 2 x USB (OTG/HOST), 1 x RJ45, 1 x Power input | |
| Media Formats |
Video (MPG, AVI, MP4, RM, RMVB, TS); Audio (MP3, WMA, MPEG, WAV, OGG, FLAC); Image (JPG, GIF, BMP, PNG) |
|
| Media Resolution | 1920x1080/1080x1920 | |
| Audio | Speaker Type | 5W, 8Ω x2 |
| Power | Power Supply | AC110~240V (50Hz~60Hz) |
| Power Consumption | ≤280W | |
| Mechanical | Color | Black, white or Customization |
| Shell Material | Aluminium | |
| Installation | cell hanging | |
| Unit Size | 599*380*280mm(without hanging pipe) | |
| Net Weight | 20 kg | |
| Gross Weight | 38 kg | |
| Package Size | 1690*780*730mm(with wooden box) | |
| Environmental | Protect level | IP65 |
| Operating Temperature | 0℃ ~50℃ | |
| Storage Temperature | -30℃ ~60℃ | |
| Operating Humidity | 10% ~80% | |
| Storage Humidity | 5% ~95% |
ID Drawing:
Application:
FAQ:
Q1: Are you a factory?
A: Yes, we are a manufacturer of LCD Window Display, Retail Digital Signage, Outdoor Digital Totem, Self-service Kiosk, and so on.
Q2: Do you accept OEM or ODM orders?
A: Yes, we welcome OEM and ODM orders.
Q3: Could you offer wholesale price?
A: Yes, of course. If you order large QTY, we can give you the bulk price.
Q4: I'm shopping at your company at the first time, how can I trust you?
A: If you have questions about our first cooperation, we fully understand. You are welcome to visit our company or our factory at any time.
Q5: I'm looking for some products which is not shown on your website, can you make me the special order?
A: We value the cooperation between us. Therefore, if you have a demand, we will be happy to provide you with a complete solution.
Q6: How to shipping my order?
A: We have strong cooperation with DHL, UPS, Fedex, TNT ect. You also can choose your own shipping forwarder.
Q7: What is your guarantee period?
A: Fionexx provides 1 year quality guarantee for the products from your shipment date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, we will provide maintenance service and technical support.
Q8: How can I pay for the order?
A: 1) For sample order: EXW factory, 100% T/T or Paypal in advance.
2) For bulk order: FOB SZ/HK, 40% deposit in advance, balance before shipment.
Q9: How to be your agent in my country?
A: You must plan to build a long-term relationship with us. Authorization will depend on your purchase volume and the expected size of the regional market.
