Product Details
Place of Origin: Shenzhen, China
Brand Name: FIONEXX
Certification: CE, RoHS
Model Number: TN900
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: EPE + Carton box
Delivery Time: 25-30 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs per month
LCD Size: |
35inch |
Resolution: |
2880x158 |
Brightness: |
400nits |
Touch Panel: |
For Optional |
Network: |
WiFi, LAN |
Application: |
Indoor, Retail Shops |
LCD Size: |
35inch |
Resolution: |
2880x158 |
Brightness: |
400nits |
Touch Panel: |
For Optional |
Network: |
WiFi, LAN |
Application: |
Indoor, Retail Shops |
Description:

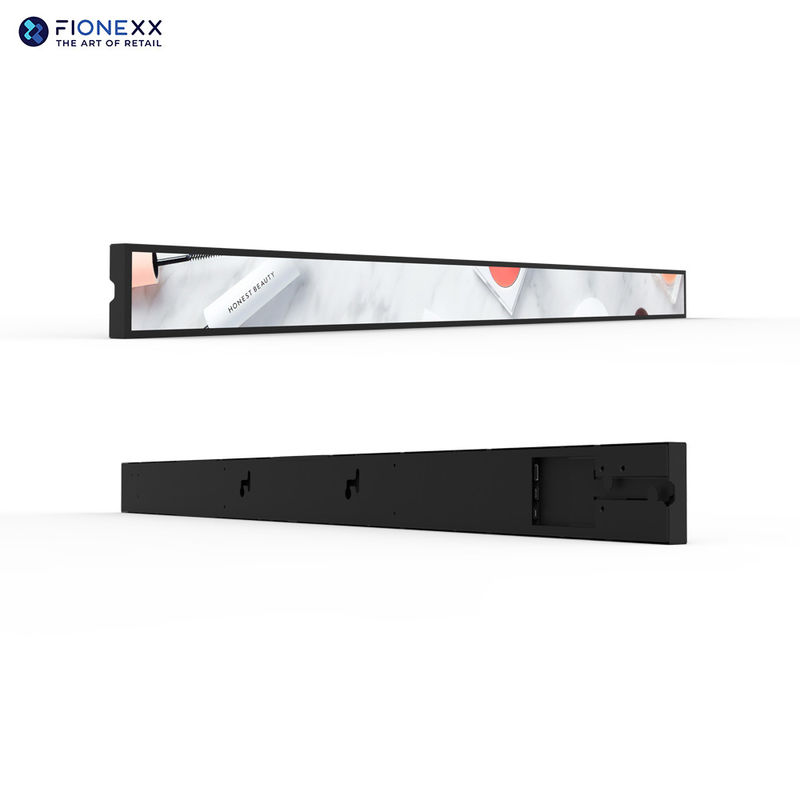

Dynamic Digital Shelf Display
Upgrading from traditional static shelf labels opens up a whole new world of possibilities. As well as creating vibrant and exciting end-aisle displays that includes animation you can also change prices or product details instantly and remotely.
IPS Panel
Designed for brightly-lit retail spaces, the high brightness nature of these displays means content really stands out. Plus, the commercial IPS panel guarantees accurate image quality at an ultra-wide viewing angle in any direction, without any fall-off in colour accuracy.
Clear HD Resolution
Unlike LED shelf edge displays this solution uses a full HD LCD panel to provide a clear image. This is high resolution is essential to be able to read labels that have small writing and also produce the best results when showing video.
Synchronise Multiple Displays
The multi-screen synchronisation function allows you to place multiple displays side-by-side and run attention-grabbing content seamlessly across the entire promotional endcap.
Streamlined Enclosure
Designed to maximise the impact of content, these displays feature a sleek, narrow bezel. This is especially important when placing multiple screens together. The compact design also adds to the aesthetic and reduces strain on shelf edges.
24/7 Commercial Grade
As they are designed for supermarkets and other retail spaces these screens are commercially graded to run constantly 24/7.
Specification:
| LCD Panel | Panel size | 35inch |
| Resolution | 2880x158 | |
| Display Area | 878.4(H) x 48.19(V) mm | |
| Brightness | 400cd/m2 | |
| Contrast | 3000:1 | |
| Colour | 1.07G | |
| Response Time | 9.5ms | |
| View Angle | 178°/178° (CR>10) | |
| Working life | 30,000 hours | |
| Computer | CPU | Quad-Core, 1.9GHz |
| RAM | 2GB | |
| ROM | 8GB | |
| OS | Android 9.0 /11.0 | |
| WiFi & BT | 802.11b/g/n & BT4.0 | |
| I/O Ports | 1x USB2.0, 1 x Micro USB, 1 x TF card, 1 x DC IN | |
| Media Formats | Video (MPEG-2, GOOGLE VP8, H.263, MOTION JPEG); Audio (MPEG, WAV, OGG, FLAC); Image (JPG, GIF, BMP, PNG) | |
| Media Resolution | 2280x158 | |
| Power | Input Voltage | DC 12V |
| Power Consumption | ≤ 24 W | |
| Mechanical | Color | Black, or Customization |
| Shell Material | Metal | |
| Installation Type | Mounted | |
| Unit Size | 891.6 (W) × 60.4 (H) × 15.8(D) mm | |
| Net Weight | 1.05 kg | |
| Gross Weight | 7.68 kg (5pcs total) | |
| Package Size | 960(W) × 370 (H) × 150 (D) mm (5pcs inside) | |
| Environmental | Operating Temperature | 0℃ ~45℃ |
| Storage Temperature | -20℃ ~60℃ | |
| Operating Humidity | 10% ~80% | |
| Storage Humidity | 5% ~95% |
ID Drawing:
Application:
FAQ:
Q1: Are you a factory?
A: Yes, we are a manufacturer of LCD Window Display, Retail Digital Signage, Outdoor Digital Totem, Self-service Kiosk, and so on.
Q2: Do you accept OEM or ODM orders?
A: Yes, we welcome OEM and ODM orders.
Q3: Could you offer wholesale price?
A: Yes, of course. If you order large QTY, we can give you the bulk price.
Q4: I'm shopping at your company at the first time, how can I trust you?
A: If you have questions about our first cooperation, we fully understand. You are welcome to visit our company or our factory at any time.
Q5: I'm looking for some products which is not shown on your website, can you make me the special order?
A: We value the cooperation between us. Therefore, if you have a demand, we will be happy to provide you with a complete solution.
Q6: How to shipping my order?
A: We have strong cooperation with DHL, UPS, Fedex, TNT ect. You also can choose your own shipping forwarder.
Q7: What is your guarantee period?
A: Fionexx provides 1 year quality guarantee for the products from your shipment date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, we will provide maintenance service and technical support.
Q8: How can I pay for the order?
A: 1) For sample order: EXW factory, 100% T/T or Paypal in advance.
2) For bulk order: FOB SZ/HK, 40% deposit in advance, balance before shipment.
Q9: How to be your agent in my country?
A: You must plan to build a long-term relationship with us. Authorization will depend on your purchase volume and the expected size of the regional market.
