Product Details
Place of Origin: Shenzhen, China
Brand Name: FIONEXX
Certification: CE, RoHS
Model Number: LC156K2
Payment & Shipping Terms
Minimum Order Quantity: 100PC
Price: Negotiable
Packaging Details: EPE+ Carton box
Delivery Time: 25-30 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs per month
LCD Size: |
15.6inch |
Resolution: |
1920x1080 |
Brightness: |
250nits |
Touch Screem: |
Double Touch Screen |
Camera: |
3D Optical Module Camera |
NFC Card: |
Support Multiple Card Payment |
Printer: |
58/80mm High Speed Thermal Printer |
Scanner: |
Support Barcode, QR Code |
LCD Size: |
15.6inch |
Resolution: |
1920x1080 |
Brightness: |
250nits |
Touch Screem: |
Double Touch Screen |
Camera: |
3D Optical Module Camera |
NFC Card: |
Support Multiple Card Payment |
Printer: |
58/80mm High Speed Thermal Printer |
Scanner: |
Support Barcode, QR Code |
Description:

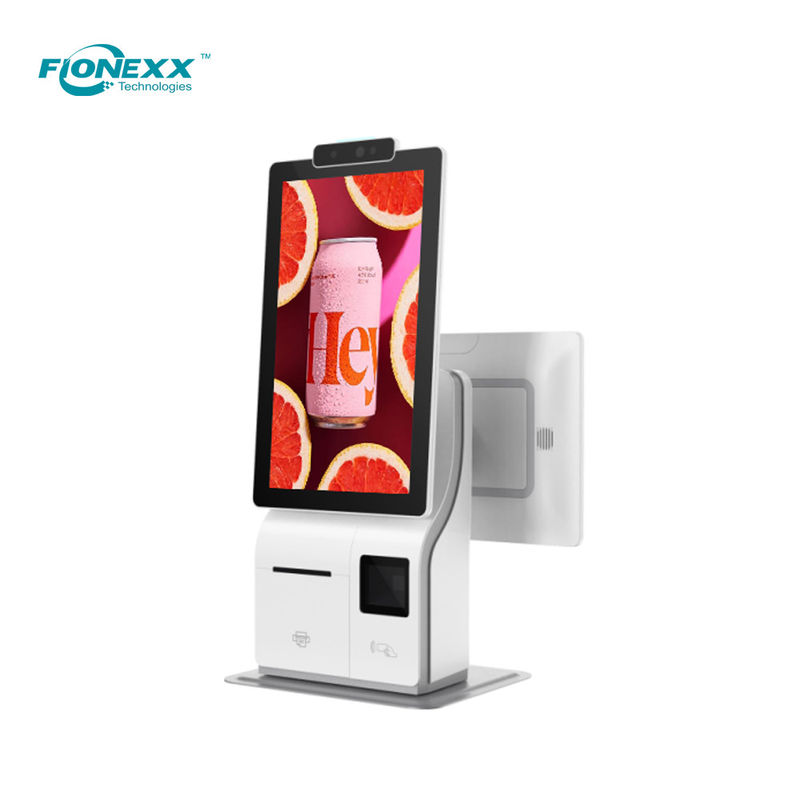

Self-service Ordering Kiosk, Robust and compact design ideal for restaurants and takeaways,with built-in 3D camera, printer & highspeed QR Scanner.
This single screen self-service POS terminal is designed to meet the latest financial payment methods. Using Rockchip RK3568 high-performance hardware platform, equipped with HJIMI 3D structured light camera and WeChat face-scan SDK (MIPS retail cloud platform). It supports mainstream payment methods such as bank card, WeChat face, Alipay scan code, WeChat scan code, integrated barcode, non-contact, printer and other modules, and supports external keyboards, cash drawers and other peripherals. It also supports single screen touch, which is mainly suitable for offline manual or self-service payment services in retail, catering, supermarkets, department stores and other scenarios, improving user shopping experience and efficiency.
Features:
- Adopt 15.6-inch IPS full-view LCD display, support single screen touch.
- Novel appearance, high-end fashion, industrial grade appearance, stable and reliable.
- Cooperating with self-developed MIPS retail platform and accessing WeChat face payment, payment transactions are faster. And it supports Alipay, WeChat scan code payment, NFC payment, and self-service product scan code payment.
- Using Rockchip RK3568 quad-core CPU, the main frequency is up to 2.0GHZ, with strong performance.
- Support multiple peripheral modules such as password keyboard, cash drawer, electronic scale, etc.
- Support system level, APP offline level, APP + background network level multiple API docking, complete documentation, support secondary development.
Specification:
| LCD Panel | Panel size | 15.6inch x2 |
| Resolution | 1920x1080 | |
| Display Area |
344.16 ×193.59 mm
|
|
| Brightness | 300cd/m2 | |
| Contrast | 800:1 | |
| Aspect Ratio | 16:9 | |
| Colour | 16.7M(8 bit) | |
| Response Time | 6.5ms | |
| View Angle | 178° / 178° | |
| Working life | 50,000 hours | |
| Computer | CPU | RK3568, Quad-Core, 2.0GHz |
| RAM | 2GB | |
| ROM | 16GB | |
| OS | Android 11.0 | |
| WiFi | 802.11b/g/n (Network Version Only) | |
| LAN | 100M/1000M Ethernet (Network Version Only) | |
| I/O Ports | 2 x USB, 1x RJ45, 1 x DC IN, 1x RJ11, 1x RJ12 | |
| Media Formats |
Video (AVI,MOV,MP4,M4V,FLV,MPG,ASF); |
|
| Media Resolution | 1920x1080 / 1080x1920 | |
| Audio | Speaker Type | 3W, 4Ω x2 |
| Power | Input Voltage | DC 24V, 12A |
| Power Consumption | 20W | |
| Mechanical | Color | White or Customization |
| Shell Material | Plastic | |
| Installation Type | Desktop, wall mount | |
| Unit Size | 599.97 x 300 x 250mm | |
| Net Weight | 15 kg | |
| Gross Weight | 20 kg | |
| Package Size | TBD | |
| Environmental | Operating Temperature | 0℃ ~50℃ |
| Storage Temperature | -30℃ ~60℃ | |
| Operating Humidity | 10% ~80% | |
| Storage Humidity | 5% ~95% |
ID Drawing:
FAQ:
Q1: Are you a factory?
A: Yes, we are a manufacturer of LCD Window Display, Retail Digital Signage, Outdoor Digital Totem, Self-service Kiosk, and so on.
Q2: Do you accept OEM or ODM orders?
A: Yes, we welcome OEM and ODM orders.
Q3: Could you offer wholesale price?
A: Yes, of course. If you order large QTY, we can give you the bulk price.
Q4: I'm shopping at your company at the first time, how can I trust you?
A: If you have questions about our first cooperation, we fully understand. You are welcome to visit our company or our factory at any time.
Q5: I'm looking for some products which is not shown on your website, can you make me the special order?
A: We value the cooperation between us. Therefore, if you have a demand, we will be happy to provide you with a complete solution.
Q6: How to shipping my order?
A: We have strong cooperation with DHL, UPS, Fedex, TNT ect. You also can choose your own shipping forwarder.
Q7: What is your guarantee period?
A: Fionexx provides 1 year quality guarantee for the products from your shipment date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, we will provide maintenance service and technical support.
Q8: How can I pay for the order?
A: 1) For sample order: EXW factory, 100% T/T or Paypal in advance.
2) For bulk order: FOB SZ/HK, 40% deposit in advance, balance before shipment.
Q9: How to be your agent in my country?
A: You must plan to build a long-term relationship with us. Authorization will depend on your purchase volume and the expected size of the regional market.
